WS50
Compact skid steer loader with 750 kg rated load capacity and globally sourced core components.
Overview
The WS50 is a compact skid steer loader built for contractors who need reliable performance in tight spaces. A 360° wide-visibility cab with lift-arm-mounted rearview mirrors, ROPS/FOPS certification, safety seat belts and handrails, all-season heating and air conditioning, and left/right joysticks for travel and attachment control keep operators safe, comfortable and precise. The cab can be manually flipped rearward in minutes without raising the lift arm, granting full access to the engine and hydraulic components. Premium globally sourced core components include PERKINS / KUBOTA / XINCHAI Tier III engines, imported Sauer hydraulic motors and pumps with direct pump-to-flywheel coupling, high-strength Japanese drive chains and original German spin-on filters. The full FUWEI attachment series — auger, backhoe arm, angle dozer blade, buckets, brooms, cold planer, pallet forks, hydraulic breaker, trencher, snow blower and more — maximizes versatility across diverse applications.
Product Gallery
Explore detailed views of WS50 features, components and performance in action

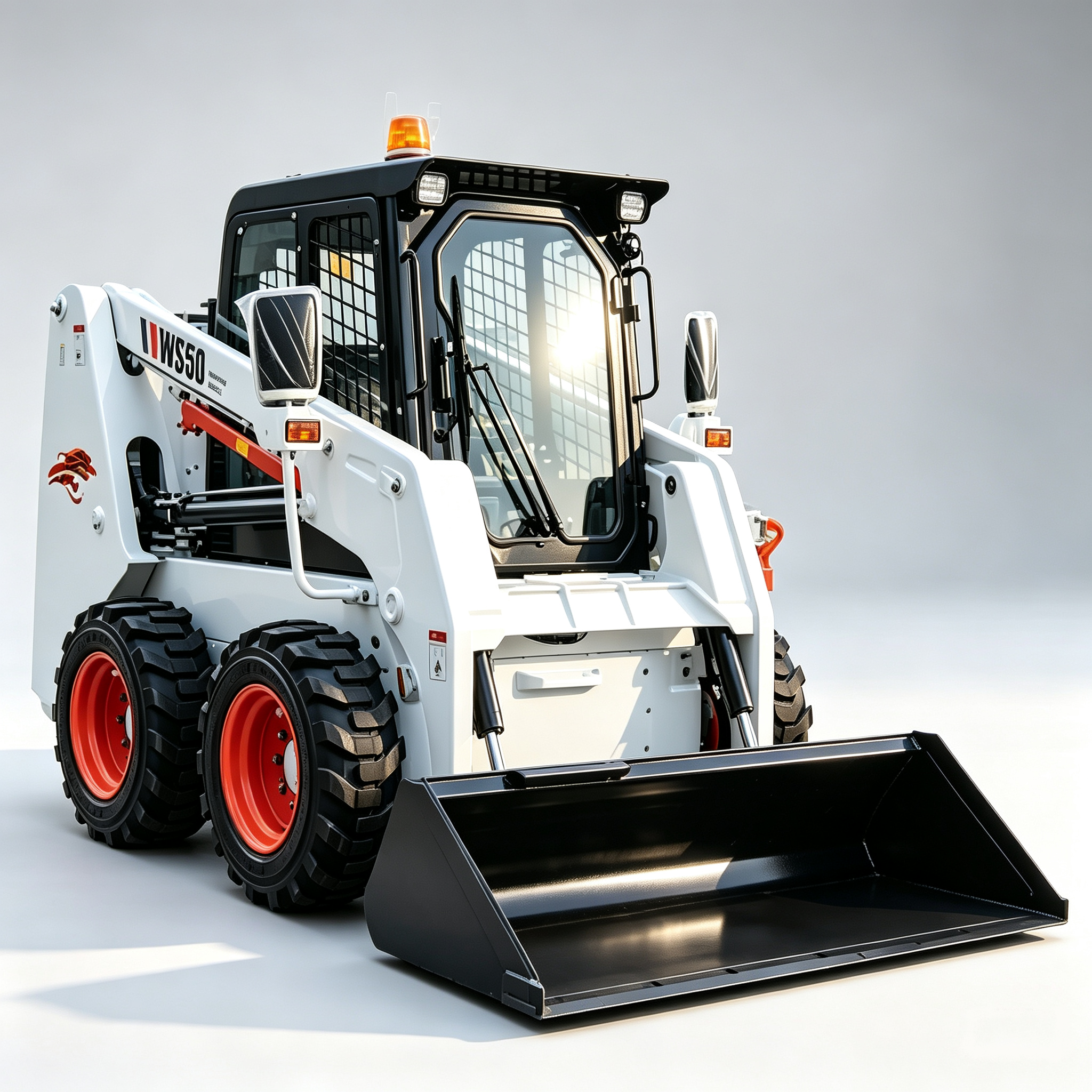

Side Profile View
Compact radial lift design with excellent visibility

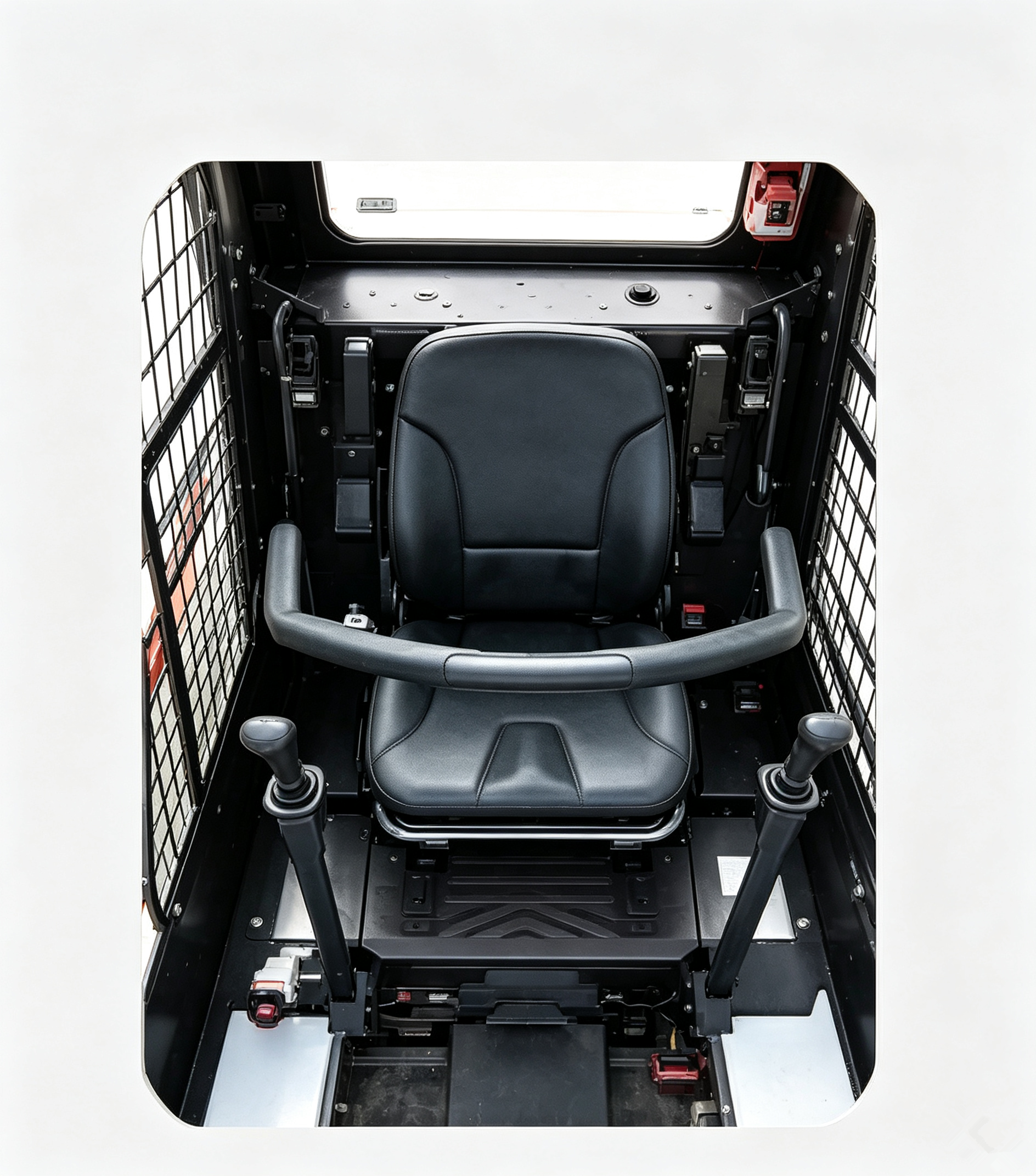

Operator Cab
ROPS/FOPS certified cab with comfortable operator platform

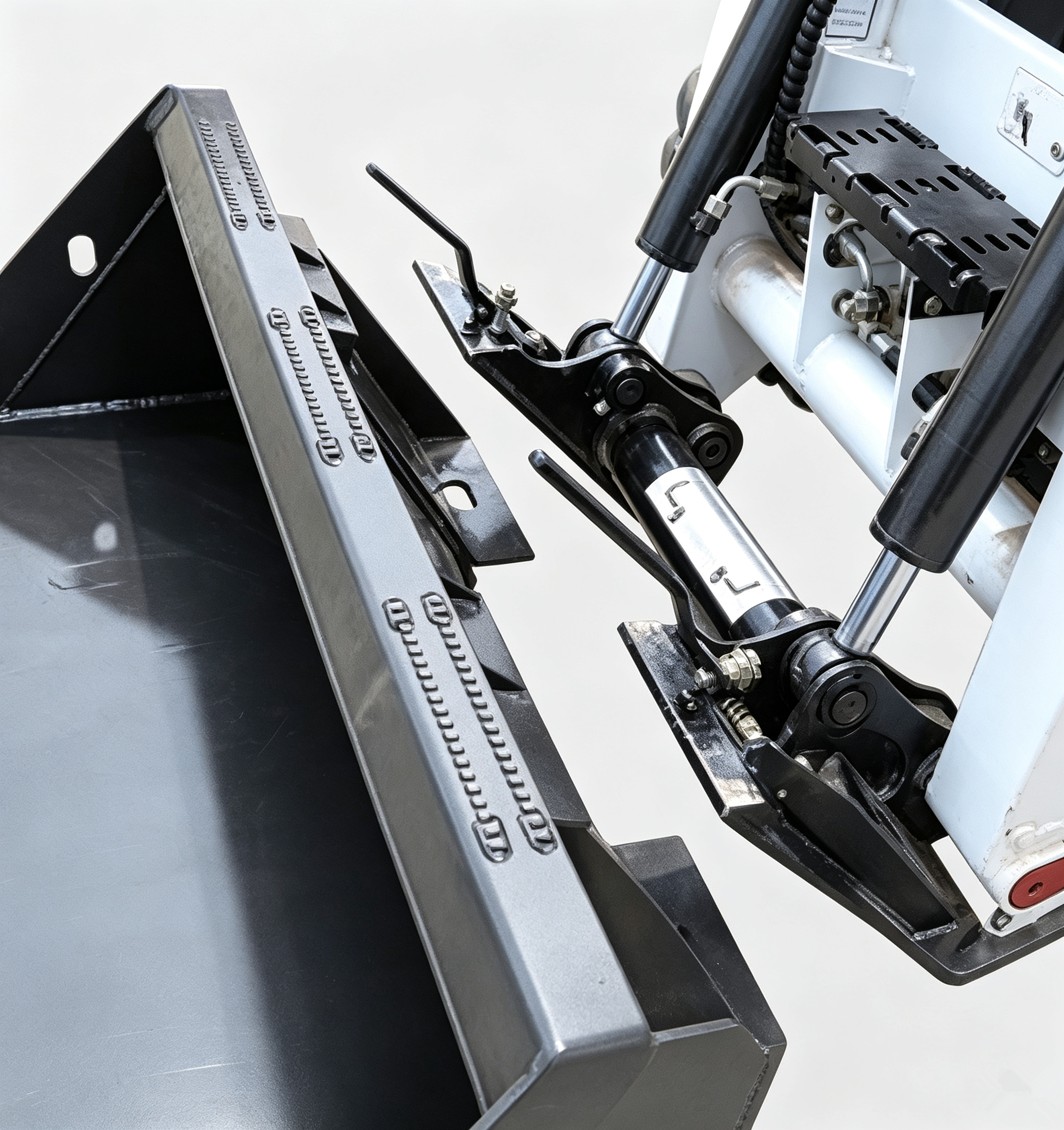

Quick Coupler System
Universal quick-coupler hitch for 30+ attachments

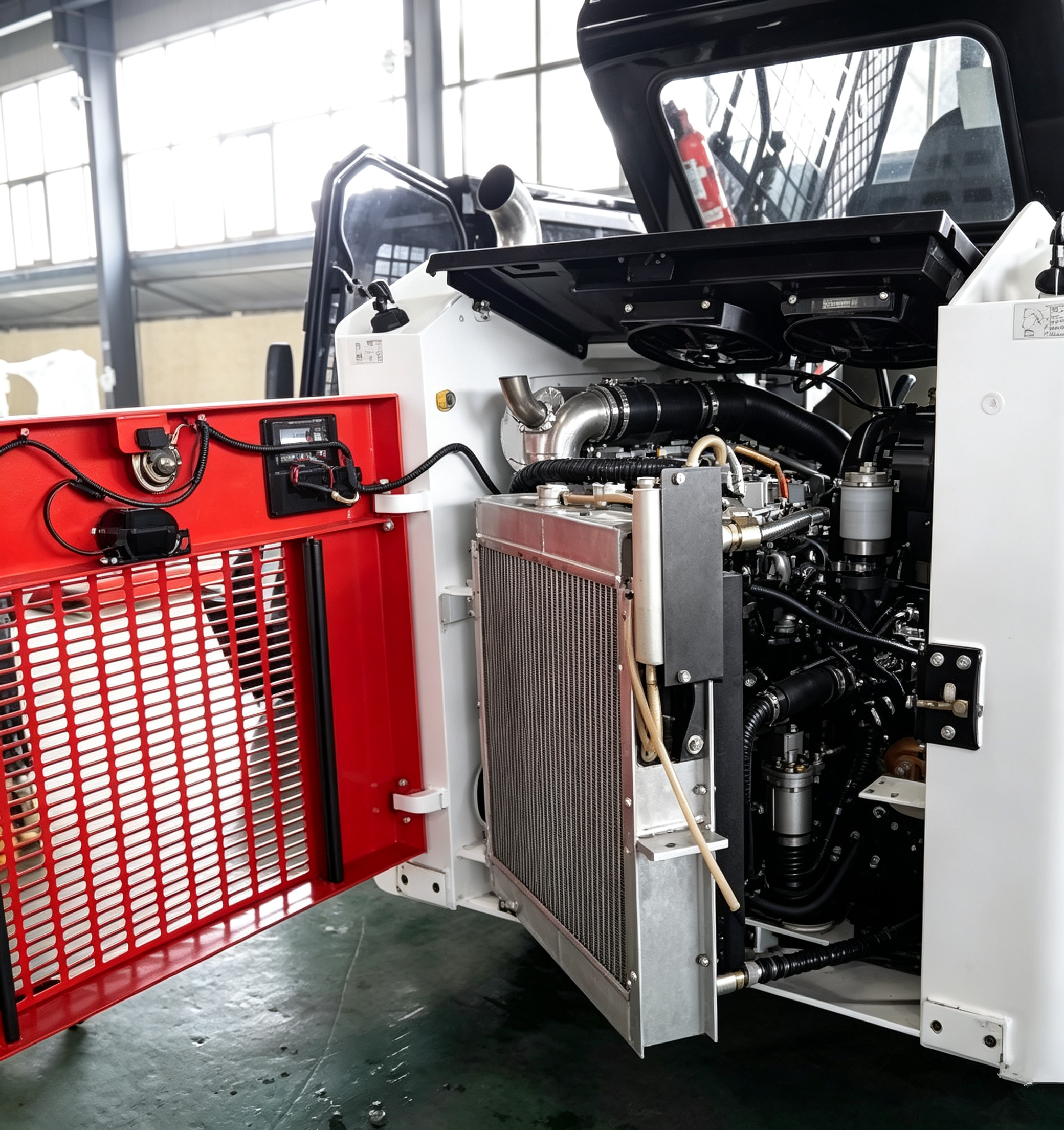

Engine Compartment
Easy maintenance access with Tier III compliant engine options
On The Jobsite
Perfect for residential construction and landscaping
Key Features
ROPS/FOPS certified cab with 360° visibility
All-season heating and air conditioning
Dual joystick travel and attachment control
Rearward-flipping cab for full maintenance access
Imported Sauer hydraulic system
Tier III emission compliant engine options
Technical Specifications
Detailed engineering specifications for WS50. All data subject to change without notice.
Skid Steer Loader - WS50
| Engine Maker | PERKINS / KUBOTA / XINCHAI |
| Engine Power | 35.7 / 36.5 / 36.8 kW |
| Rated Speed | 2600 / 2600 / 2650 rpm |
| Operating Capacity | 750 kg |
| Tipping Load | 1,500 kg |
| Operating Weight | 3,003 kg |
| Bucket Capacity | 0.35 m³ |
| Dumping Height | 2,303 mm |
| Dumping Reach | 675 mm |
| Max Travel Speed | 12 km/h |
| Wheelbase | 999 mm |
| Turning Radius Front Without Bucket | 1,230 mm |
| Length | 3,413 mm |
| Width | 1,780 mm |
| Height | 2,007 mm |
| Fuel Tank Capacity | 88 L |
| Hydraulic Reservoir Capacity | 70 L |
* Specifications may vary by region and configuration. Please consult with our sales team for exact specifications in your market.
Typical Applications
Residential construction
Landscaping
Farm work
Rental fleets
Skid Steer Loader Series Advantages
Universal quick-coupler hitch
30+ interchangeable attachments
ROPS/FOPS certified cab
Tier III emission compliant engine options
