WS65
Mid-size skid steer loader with 900 kg rated operating capacity and full hydraulic control system.
Overview
The WS65 pairs a Mitsubishi S4S or Kubota engine with a full hydraulic control system that increases productivity, reduces operator fatigue, prevents faulty operation and delivers stable performance. The optimized component structure increases ground clearance while keeping the machine stable both vertically and horizontally, and an integrated electromagnetic valve controls speed, brake and attachment functions within the multi-way valve with simplified hydraulic pipe routing. The redesigned ROPS/FOPS 2-in-1 safety cab includes air conditioning, safety belt, bar and seat, a dumping seat and LCD instrumentation. An international-size quick coupler allows fast attachment changes for different working conditions, while the maintenance-free high-strength 100H drive chain and swing-out all-aluminum radiator keep daily servicing quick and easy. All service and maintenance points are accessible through the rear of the machine, and the tilting cab provides easy access for inspection.
Product Gallery
Explore detailed views of WS65 features, components and performance in action

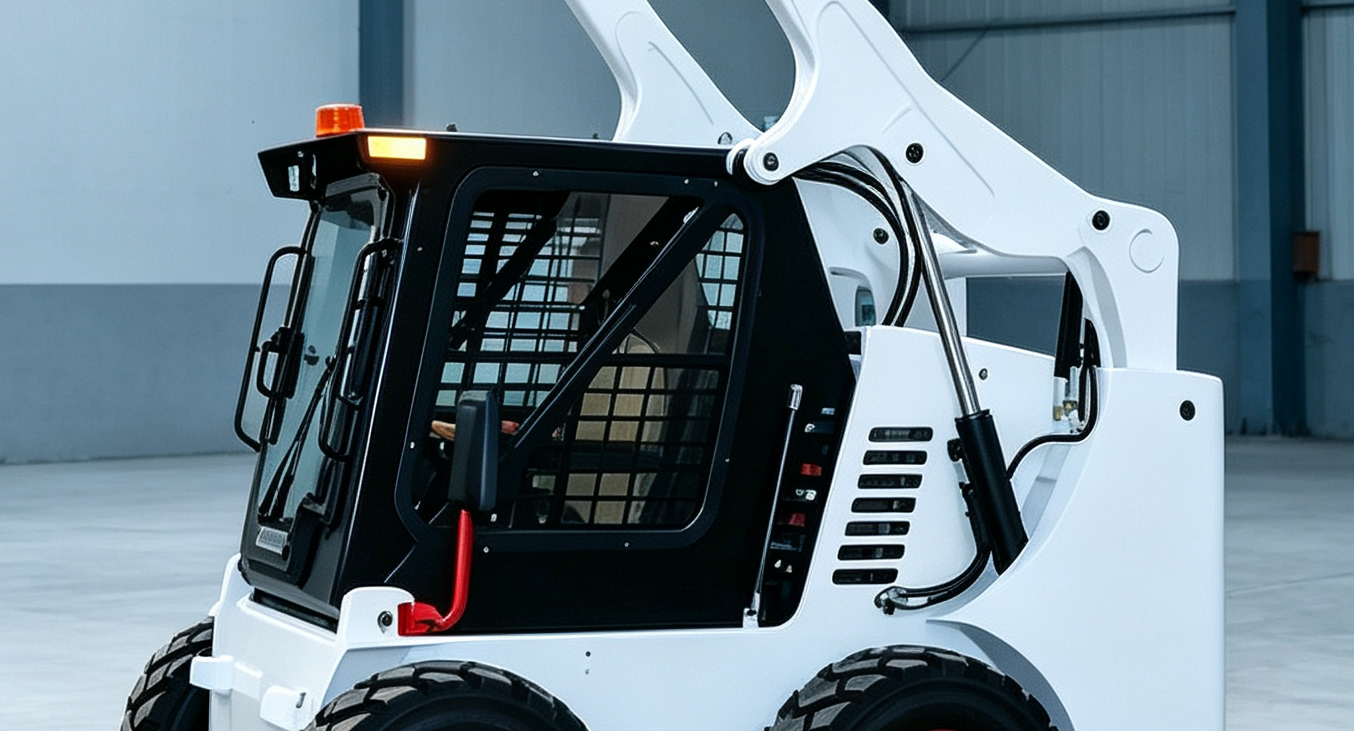

Vertical Lift Arm Design (Optional)
Extended reach and higher dump height for versatile applications

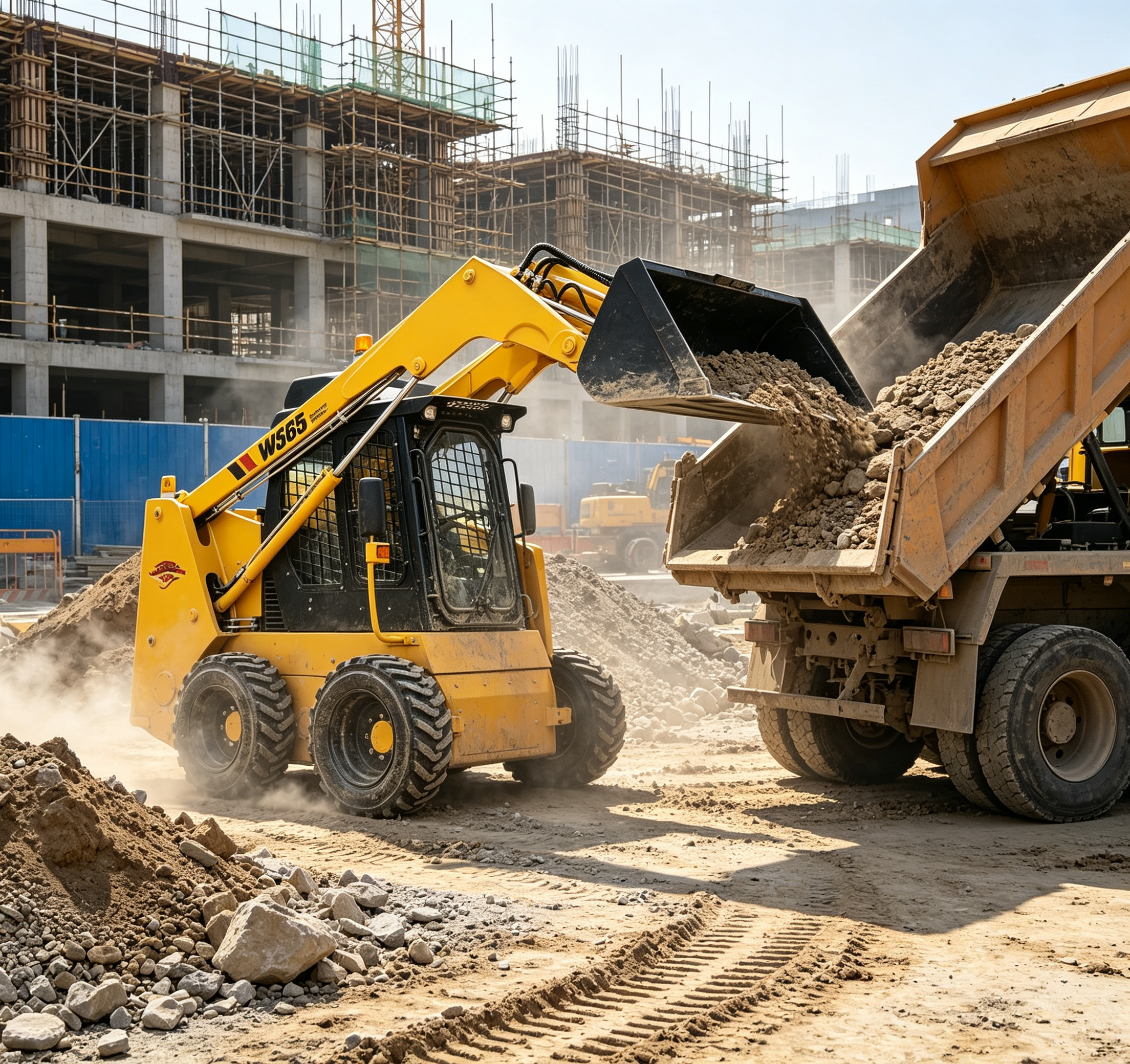

Truck Loading Operation
Perfect reach height for efficient truck loading

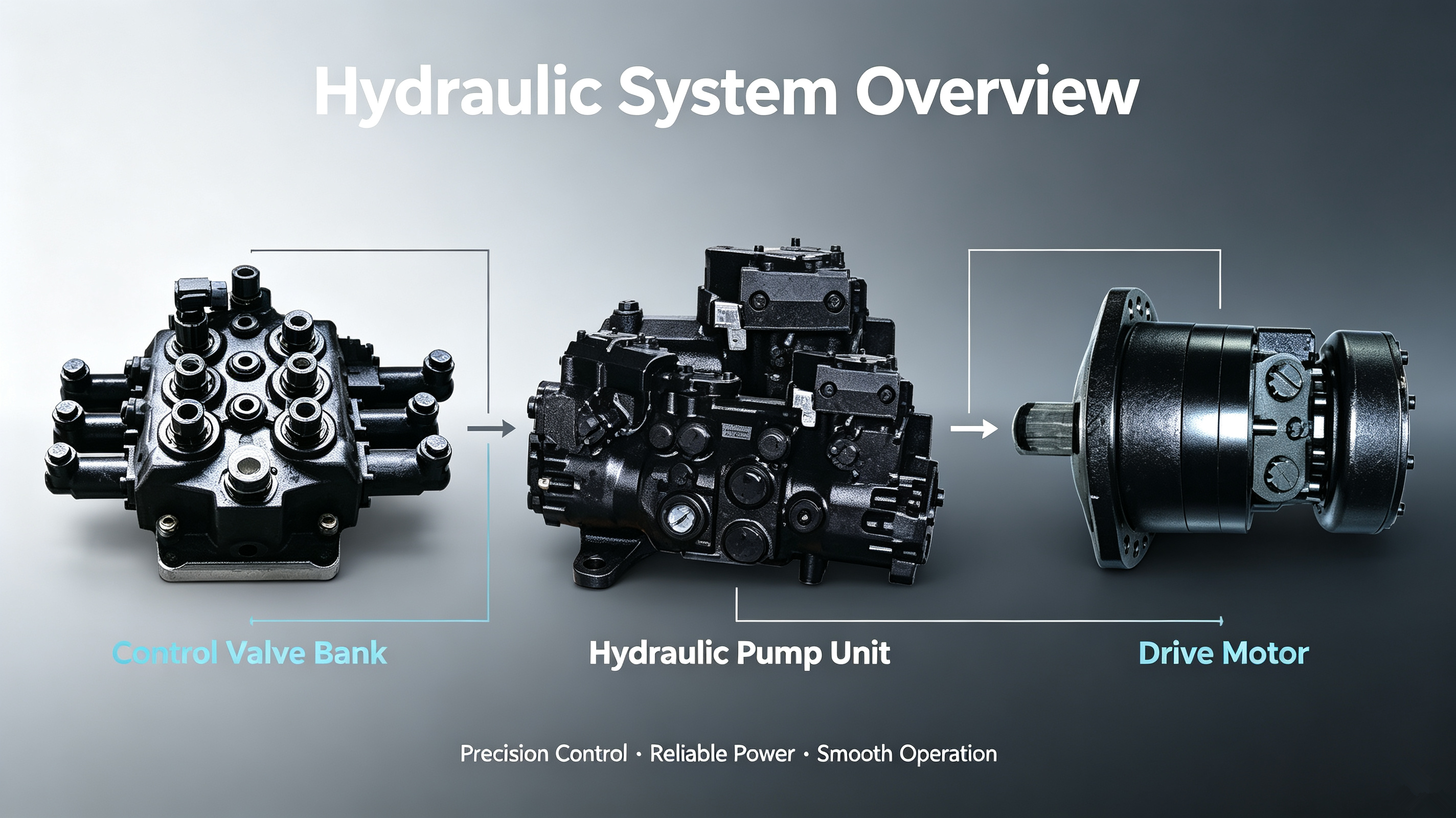

Advanced Hydraulic System
Superior breakout force and precise control

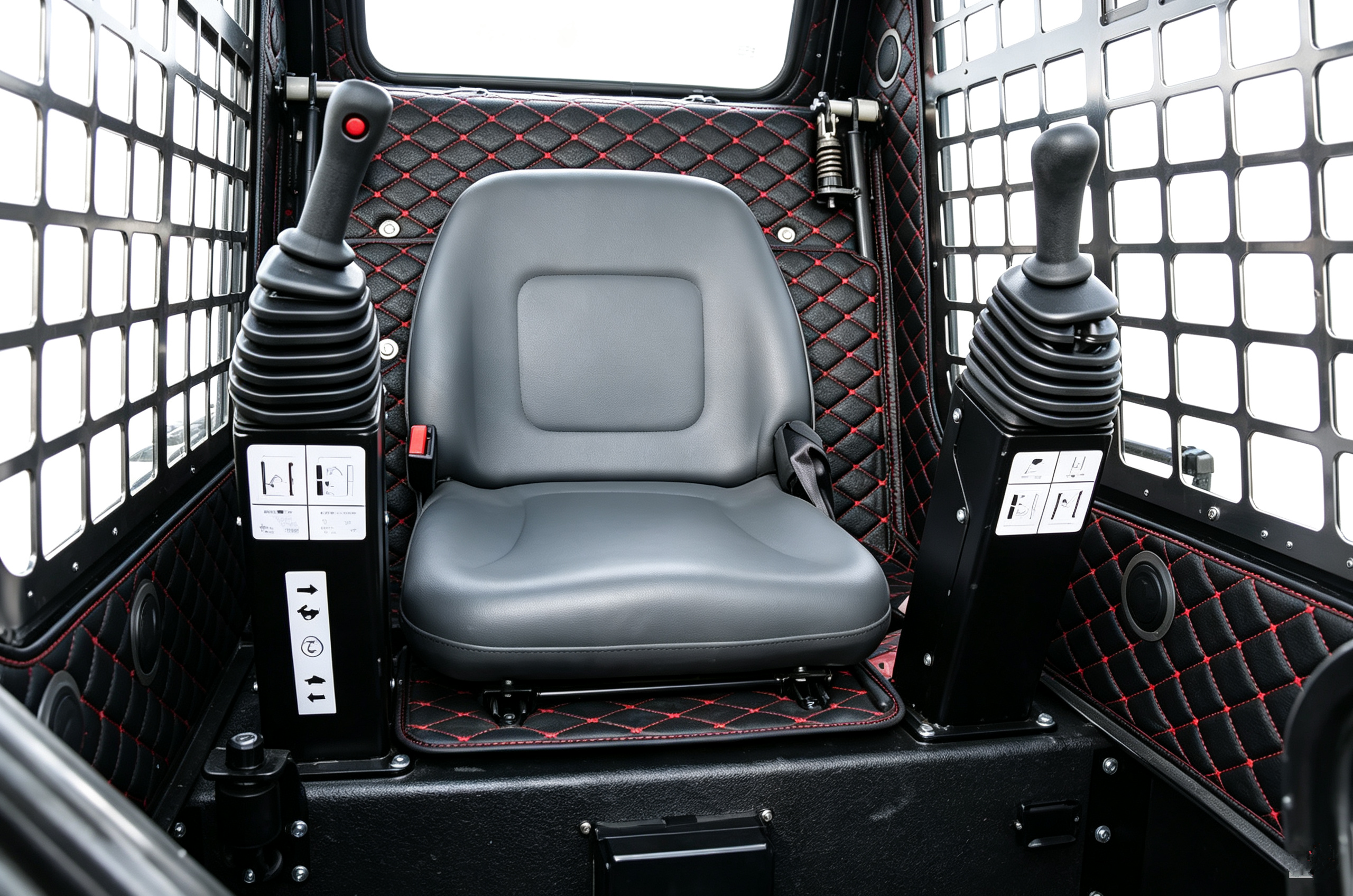

Operator Controls
Ergonomic joystick controls for comfortable operation
Key Features
Full hydraulic control system
ROPS/FOPS 2-in-1 certified cab with A/C
International-size quick coupler
Maintenance-free high-strength drive chain
Swing-out all-aluminum radiator
Rear-accessible service points with tilting cab
Technical Specifications
Detailed engineering specifications for WS65. All data subject to change without notice.
Skid Steer Loader - WS65
| Engine Maker | Mitsubishi S4S / Kubota |
| Engine Power | 47 / 49.8 kW |
| Rated Speed | 2500 / 2600 rpm |
| Operating Capacity | 900 kg |
| Tipping Load | 1,800 kg |
| Operating Weight | 3,420 kg |
| Bucket Capacity | 0.41 m³ |
| Dumping Height | 2,551 mm |
| Dumping Reach | 603 mm |
| Max Travel Speed | 13 km/h |
| Wheelbase | 1,020 mm |
| Turning Radius Front Without Bucket | 1,235 mm |
| Length | 3,433 mm |
| Width | 1,800 mm |
| Height | 2,007 mm |
| Fuel Tank Capacity | 88 L |
| Hydraulic Reservoir Capacity | 70 L |
* Specifications may vary by region and configuration. Please consult with our sales team for exact specifications in your market.
Typical Applications
Truck loading
Material placement
General construction
Demolition work
Skid Steer Loader Series Advantages
Universal quick-coupler hitch
30+ interchangeable attachments
ROPS/FOPS certified cab
Tier III emission compliant engine options
